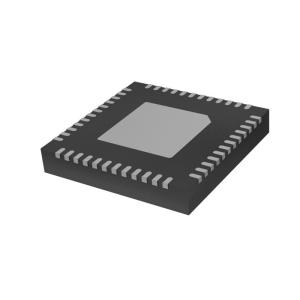

STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers

STSPIN32F0ATR Advanced BLDC Controller With Embedded MCU Microcontrollers

Product Description Of STSPIN32F0ATR

STSPIN32F0ATR is a System-In-Package providing an integrated solution suitable for driving three-phase BLDC motors using different driving modes.

Specification Of STSPIN32F0ATR

Feature Of STSPIN32F0ATR

• Extended operating voltage from 6.7 to 45 V

• Three-phase gate drivers

• 600 mA sink/source

• Integrated bootstrap diodes

• Cross-conduction prevention

• 32-bit ARM® Cortex®-M0 core

• Up to 48 MHz clock frequency

• 4-kByte SRAM with HW parity

• 32-kByte Flash memory with optionbytes used for write/readout protection

• Availability FW bootloader

• 3.3. V DC/DC buck converter regulator withovercurrent, short-circuit, and thermalprotection

• 12 V LDO linear regulator with thermalprotection

• 16 general-purpose I/O ports (GPIO)

• 5 general-purpose timers

• 12-bit ADC converter (up to 9 channels)

• I2C, USART and SPI interfaces

• 3 rail-to-rail operation amplifiers for signalconditioning

• Comparator for overcurrent protection withprogrammable threshold

• Standby mode for low power consumption

• UVLO protection on each power supply

• VM, VDD, VREG and VBOOTx

• On-chip debug support via SWD

• Extended temperature range: -40 to +125 °C

Applications Of STSPIN32F0ATR

• Smart manufacturing equipment

• Power tools, FANs and pumps

• Home appliances: vacuum cleaners,hand/hair dryers, air purifiers and coffeemachines

• High-tech applications such as: drones,gimbals, educational/home robots
